Relief group for nuclear power plant

For more than 60 years CMR develops control and supervision solutions in the following fields : energy, industry and marine. CMR uses its own intelligent sensors and automation systems.

CMR employs more than 700 employees in 12 countries. The group product tools for the sectors of energy, industry and marine, by using its own smart sensors.

CMR develops a wide range of tools for its users, from personalized service to design of products. warrants that all of its services honor the latest regulations and other quality certifications.

Solutions solaires et hybrides

Advantages

CMR is oriented towards the sector of renewable energies. The objective is to provide solutions and reliable services to its customers , by proposing digitization, today unavoidable .

Aware of importance of its domain of activity, CMR implements processes to conserve The world of tomorrow.

For this , the company proposes a permanent line of conduct to all employees of the group, whatever their workplace.

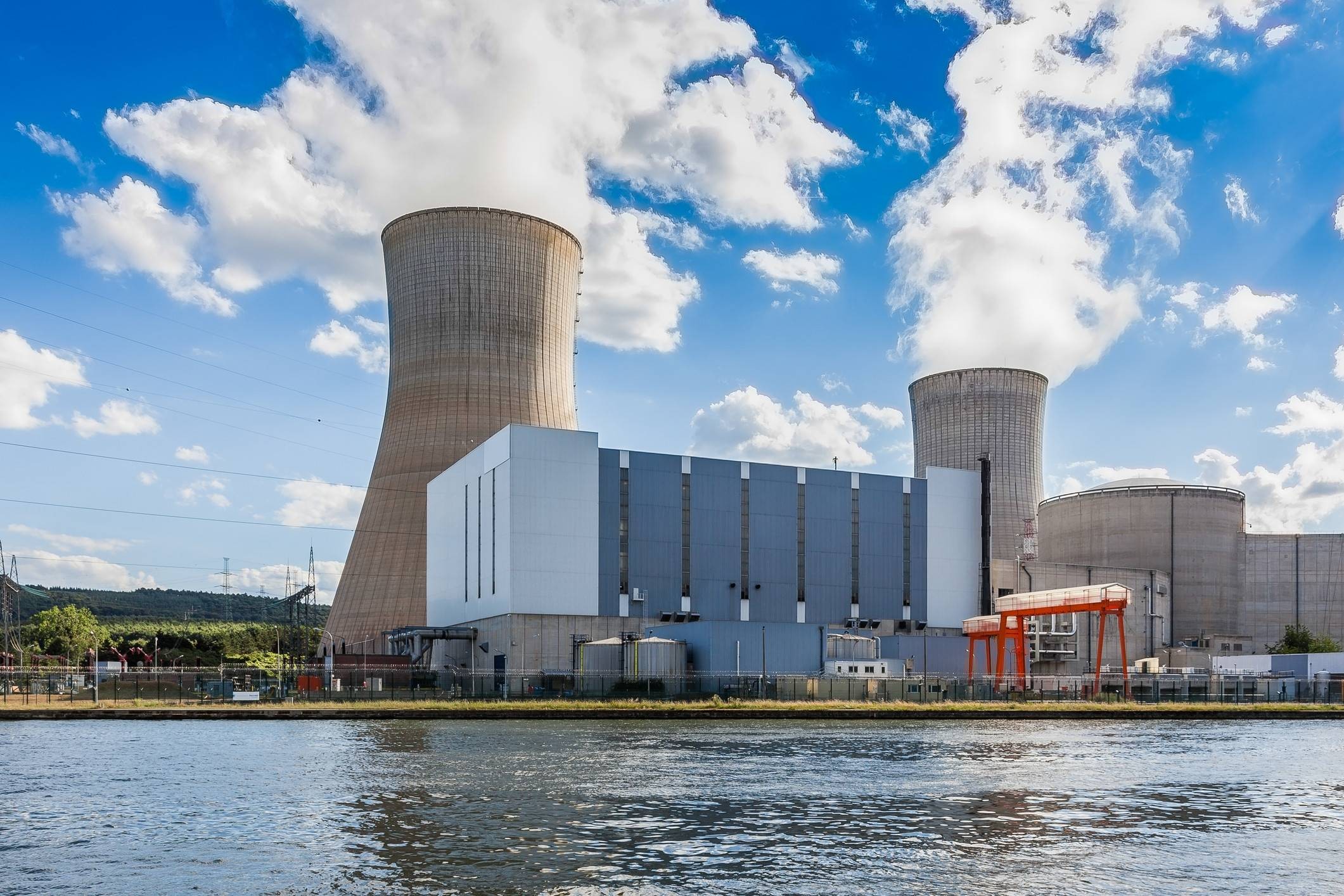

Principle and operation

The fission of uranium atoms produces heat, which then transforms water into steam and sets in motion a turbine connected to an alternator which produces electricity.

1. The primary circuit
In the reactor, the fission of uranium atoms produces a large amount of heat. This heat increases the temperature of the water circulating around the reactor, to 320 ° C. The water is kept under pressure to keep it from boiling. This closed circuit is called the primary circuit.

2. The secondary circuit
The primary circuit communicates with a second closed circuit, called the secondary circuit, via a steam generator. In this steam generator, the hot water of the primary circuit heats the water of the secondary circuit which turns into steam. The pressure of this vapor turns a turbine which in turn drives an alternator. Thanks to the energy supplied by the turbine, the alternator produces an alternating electric current.

A transformer raises the voltage of the electric current produced by the alternator so that it can be more easily carried in very high voltage lines.

3. The cooling circuit
At the outlet of the turbine, the steam from the secondary circuit is again transformed into water thanks to a condenser in which circulates cold water from the sea or from a river. This third circuit is called the cooling circuit. On the banks of the river, the water in this 3rd circuit can then be cooled by contact with the air circulating in large towers, called air coolers.

The 3 water circuits are watertight with respect to each other.

Solutions solaires et hybrides

Relief group for nuclear power plant: creation of intelligent hydroelectric solutions

Vision

Energy, industrial and marine companies are researching actively renewable, low carbon sources of energy. Our will is to facilitate access to these renewable energies. How? 'Or' What ? By shaping hybrid and microgrid solutions, which optimize energy and storage efficiency.

Mission

We design intelligent instrumentation and automation systems for a cleaner world in the sectors of energy, industry and marine. Since 1959, we design services innovative and also tailor-made tools: intelligent sensors, monitoring systems efficient and automation. All these products are reserved to energy, industry and the marine industry.

Values

Our virtues are those that guide our operations and advance our business. United, all employees who constitute our teams support our values ​​ and work ardently to promote them.

In addition , we educate our collaborators about the consumption of energy resources and limit consumption of & # 039; water, energy or even paper (recycling, communications, ...).

Energy and education are the guidelines of CSR policy. CMR is committed to deploy its own environmental and social project activities. All employees are involved in this challenge CSR.

CMR examines every year its carbon footprint in order to reduce it. Actions to optimize the transport of raw materials and finished products are at the center of its concerns.

CMR examines the life cycle of its products as well as the constitution of raw materials to improve waste recycling. The R & amp; D department centralizes its efforts on the integration of sustainable development at all levels of the company .

Solutions solaires et hybrides

Use case

Energy and education are the guidelines of CSR policy. CMR is committed to develop its own environmental and social project activities. All collaborators are committed in this challenge CSR.

CMR auscultates every year its carbon footprint for reduce it. Actions to perfect the transport of raw materials and finished products are at the center of its concerns.

Solar

We realize and deliver turnkey solar or hybrid power plants for micro-grid, industrial or grid-connected installations.

La solution HYDROS designed by CMR makes it possible to hybridize diesel generator installations with solar production and potentially storage.

The metamorphosis of thermal power plants into hybrid plants brings many benefits to the customers of these facilities:

  • »Significant reduction in use of fuels
  • »Strong decrease in CO2 emissions
  • »Gain in competitiveness on the tariff of the electricity produced
  • »Decrease in maintenance costs .

Our HYLIOS solution is essentially dedicated for emerging countries strongly dependent on thermal production, but presenting significant solar potential.

The difficulty of hybrid thermal power plants resides in the dimensioning of the equipment of the thermal part, the storage, and in the piloting. The goal is to deliver a continuous supply of electricity to customers.

Our HYLIOS solution is equipped with an energy flow management and control system, making it possible to meet the use of energy needs. This solution is available for autonomous and nomadic mini-power plants but also for large hybrid ground installations.

Our energy management system offers many features for:

  • » maximize electrical efficiency
  • »Decrease the consumption of fuels
  • 'Improve self-consumption

Offshore

We create low voltage electrical distribution boards, lifting and automation systems to international offshore oil and gas players. CMR supplies switchgear and energy management cabinets to international operators of production, storage, loading platforms and floating supports (FPSO ships).

CMR is a global leader in the petroleum industry. We supply electrical systems for your drilling rigs, ships and wells.

Installed on the Asian market, we develop electrical panels and distribution cabinets in collaboration with Siemens and Schneider Electric.

Using reliable and quality components, CMR meets all the obligations of the petroleum industry with total control of costs and deadlines.

Nuclear

We are validated K3AD for the creation and installation of nuclear power plant measuring instruments.

Created according to nuclear regulations, our equipment operates under accidental circumstances and in accordance with the service life of nuclear power plants. 60 years of know-how. CMR is known as a major global player in the nuclear industry.

We certify an irreproachable quality of service to our customers: from engineering to qualification including mastery of the supply chain.

CMR guarantees the management of the obsolescence of its products installed in more than 100 nuclear power plants since the 1980s.

We specialize in solutions for nuclear power plants and automation. Our customers regularly call on us for the supply, engineering, installation and maintenance of nuclear temperature sensors.

Industry

We produce intelligent control systems to maintain secure operations. We support our clients in the areas of energy and industry.

CMR concretizes your projects from the study, project management, testing, installation, programming, site management and commissioning.

We bring reliable and sophisticated systems that unite the latest technology.

A global partner: we offer a local clothing thanks to support in our 12 operational sites around the world. A service adjusted to our international customers, with installations all diversified and requesting specific needs.

As an EPC, we bring exclusive service throughout the world: engineering, design, procurement, logistics, set-up and commissioning.

Engine & Propulsion

Our 60 years of engine expertise allows us help conform and maintain your electrical installations with proven stability of instrumentation.

We create individual components and successful tailored solutions to the obligations of your engine instrumentation:

  • »Industrial motor sensors
  • »Cabling systems
  • »Alarm monitoring system

CMR enables total management of the life cycle of products to engine and generator manufacturers. This is made possible thanks to our engineers and an perfected supply chain. CMR is your partner from the design phase to commissioning.

We install and ensure after-sales service for all your equipment anywhere in the world.

Hydro

COSTRONIC, a CMR Group subsidiary, puts all its experience in the field of automation and electrical engineering at the service of operators of hydroelectric power stations.

We collaborate for over 30 years with end buyers , major design offices and turbine manufacturers to offer turnkey solutions.

We supply all electrical products for hydroelectric power plants with tools adapted to the constraints and needs of operators.

Our control solutions guarantee maximum availability of installations and their daily production. They are based on recent technological innovations to optimize your plant and its operation.

With more than 2,500 completed projects, we are recognized as developers of control tools in various sectors.

For more than 60 years, we have put our skills at the service of our customers.

References

Latest completed projects

Engineering & Key Account Management

Engineering & Key Account Management

Our goal is to drive growth by supporting customers with our solutions to build long-term relationships aligned with our Key Account Management strategy.

Nuclear Monitoring Unit

Nuclear Monitoring Unit

S128NG Monitoring Unit dedicated for all Emergency Diesel Generators (EDG) installed on the French nuclear fleet.

Offshore patrol vessel

Offshore patrol vessel

Integrated control and command platform & cyber security, turnkey system delivered from studies to commissioning.
